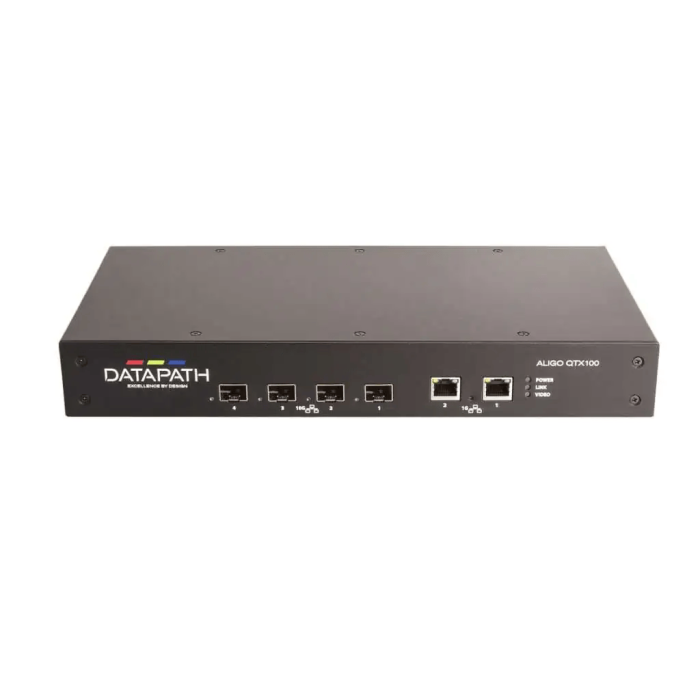

Delivering unprecedented quality and flexibility in IP content distribution.
- Connects up to four HDMI 2.0 inputs (4K60) to your 10G AV network. Use in conjunction with a VSN controller to distribute up to 16 independent HD outputs per unit.
- On-board SQX encoding enables compressed content to be sent to a 1G network.
- Low latency KVM is supported for each source via the onboard USB 2.0 interfaces.
- Independent routing of Video and embedded Audio channels.
Delivering unprecedented quality and flexibility in IP content distribution.
- Connects up to four HDMI 2.0 inputs (4K60) to your 10G AV network. Use in conjunction with a VSN controller to distribute up to 16 independent HD outputs per unit.
- On-board SQX encoding enables compressed content to be sent to a 1G network.
- Low latency KVM is supported for each source via the onboard USB 2.0 interfaces.
- Independent routing of Video and embedded Audio channels.
Nous sommes une équipe de passionnés et d’experts, évoluant étroitement avec nos fidèles partenaires et nos chers clients pour les accompagner au quotidien dans la réalisation de leurs projets audiovisuels.En savoir plus
Horaires d’ouverture
Lundi - Jeudi:
9:00 - 13:00
14:00 - 18:00
Vendredi:
9:00 - 13:00
14:00 - 17:00
Samedi - Dimanche:
Fermé
Vous avez une demande ?
Nous aimerions beaucoup avoir de vos nouvelles. Veuillez remplir notre formulaire de demande pour nous laisser vos commentaires. Laisser un commentaire
Fonctions principales
Video Input Connections
4 x HDMI 2.0 full size connectors
HDCP Support
HDCP v2.2
HDMI Pixel Clock Maximum
600 MHz
HDMI Pixel Clock Minimum
25 MHz
Typical Resolutions, HD Stream
Up to 150Mpixels/sec, maximum line length 2048 Examples: 1920x1080p 60Hz (SMPTE timings) 1920x1200p 60Hz (CVT-Reduced Blanking) 2048x1080p 60Hz (CVT-Reduced Blanking)
Typical Resolutions, 4K Stream
Up to 600Mpixels/sec, maximum line length 4096 Examples: 3840x2160p 60Hz (SMPTE timings) 4096x2160p 60Hz (CVT-Reduced Blanking)
Scan Type
Progressive. Interlaced video not supported.
Video Sampling Formats [1] 10,12-bit modes coming soon
DS10G by Datapath (visually lossless & low latency over 10Gb network) Additional H.264 SQX streaming at source resolution for each port
Network Connections
4x 10Gb SFP+ Fiber ports (Lossless streaming interface), Note: Compatible 850nm multi-mode SFP modules are available as a separate accessory. 1x 1Gb RJ45 (Control/Management port) 1x 1Gb RJ45 (Media port for SQX streaming)
Multicast Streaming Support
Each source is available at any number of displays in parallel. Requires IGMPv2 enabled at network switch.
Maximum Sources Per System
At least 220 (UHD), 650 (HD)
Audio Support
Transmit stereo HDMI embedded audio for each input independently routable to multiple sinks. The embedded audio consists of up to four channel pairs encoded in PCM format, up to 96KHz sampling.
KVM Support
4 x Type-B USB host ports for connecting to a USB host PC HID device support (keyboard, mouse etc.) independently routable to sink
